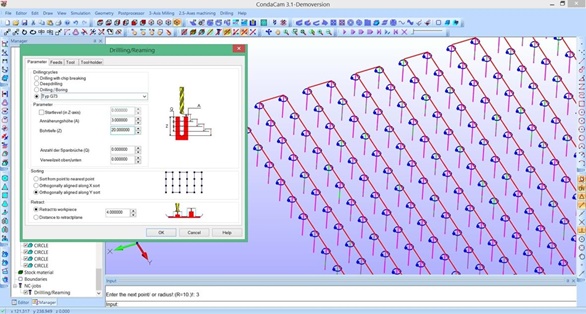

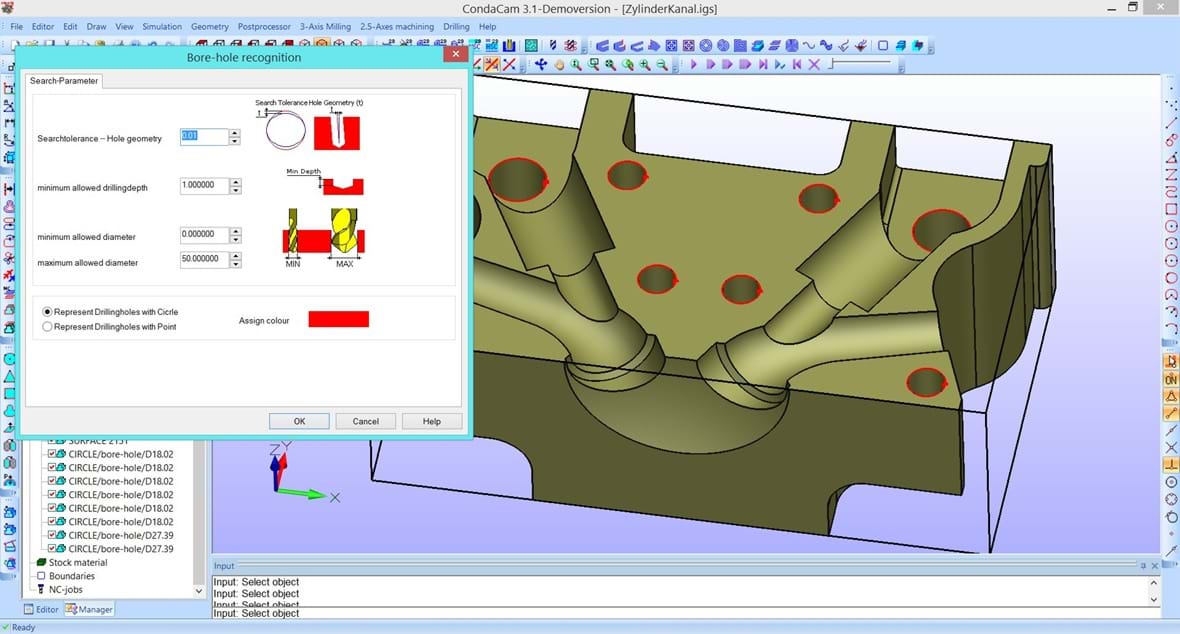

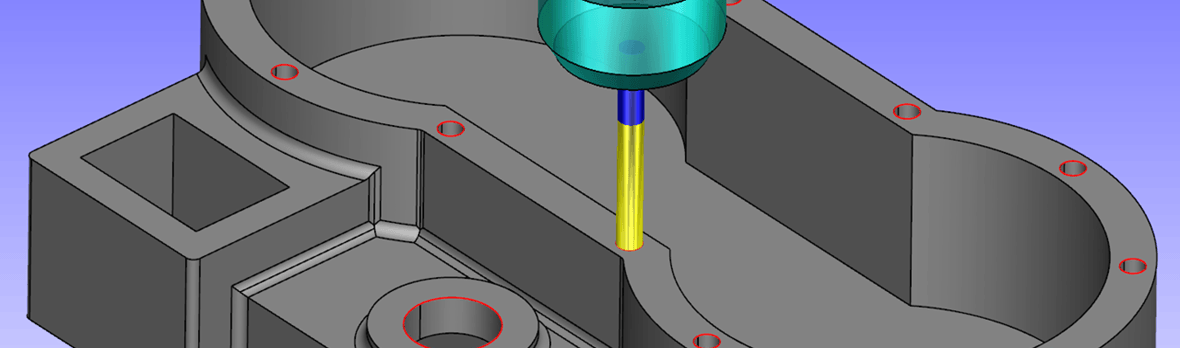

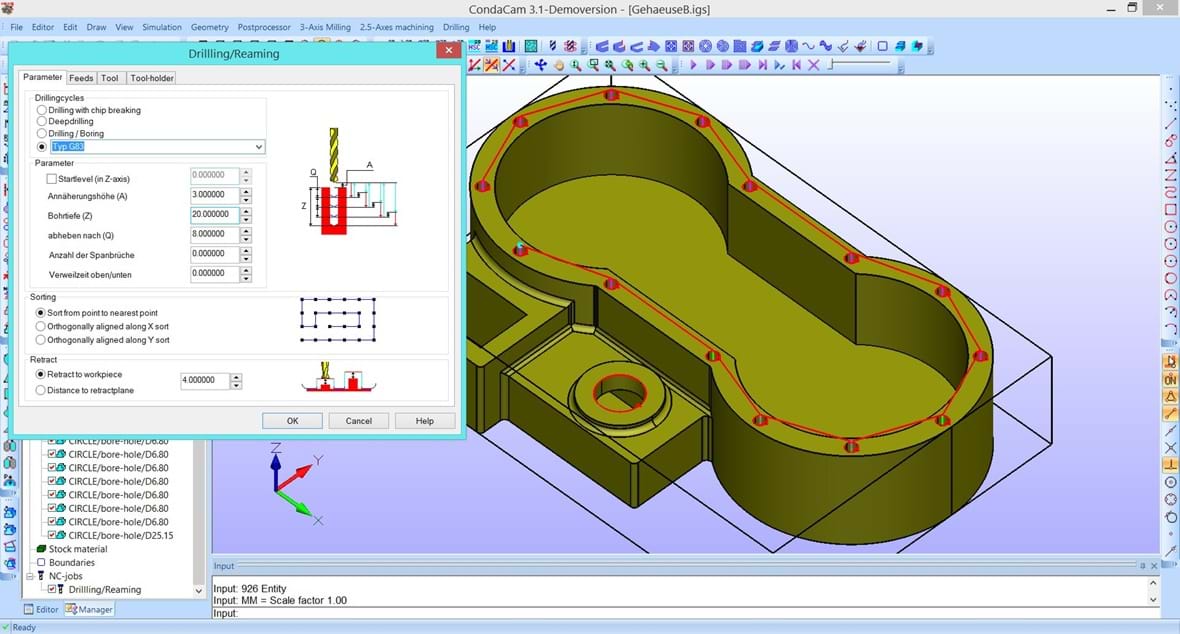

As origin elements for the position of the bores can serve circles and points. Condacam automatically sorts the sequence of the drilling operation according to a prescriped pattern. The machining can be carried out as simple drilling/reaming, drilling with chip breaking or as deep-hole drilling.
Bore-milling

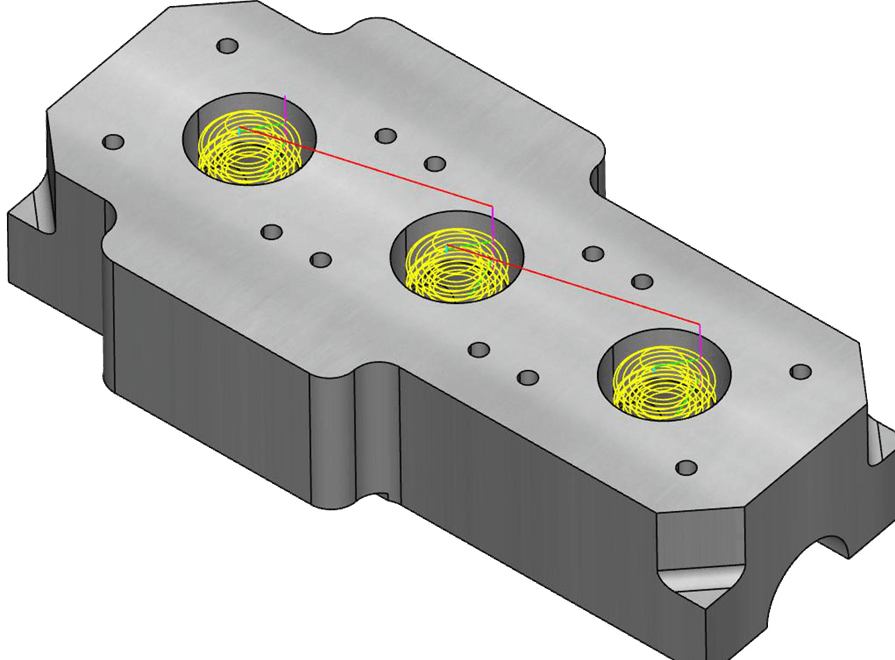

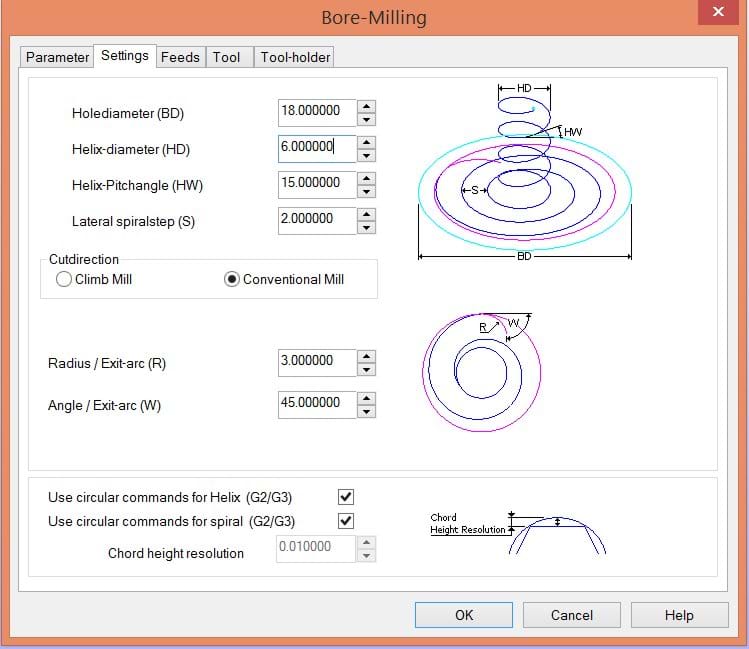

With the Bore-milling-function circular pockets let be created precisely and efficient. The elaborating of drilled-holes or circular pockets is continuously made with a spirally and helical step and with tangential transitions in the realm of the milling surface. In this way the tool paths are optionally implemented with circle interpolations (in DIN “G2/G2) This enables the exploiting of the maximum control precision.
